706B Ch= 120156-B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1952–1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38679

• • alternative name: Emerson Television

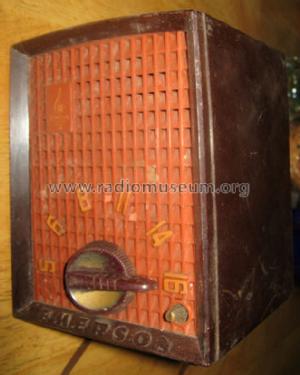

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

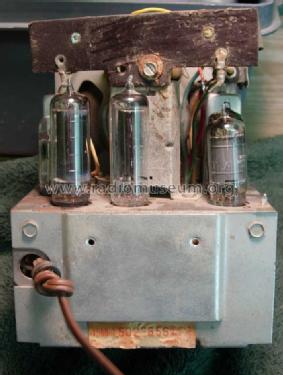

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 or 12AV6 50B5 or 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / AC/DC 117V =110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 706B Ch= 120156-B - Emerson Radio & Phonograph

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 5 x 6.5 x 5 inch / 127 x 165 x 127 mm

• Notes

• Emerson model 706B is an AC/DC operated AM superheterodyne receiver.
  Colors available: Walnut; Ivory, Grey, Maroon, Pink; Gunmetal and Yellow.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

• Literature/Schematics (1)
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 178, folder 5, dated 9-52)

• Literature/Schematics (3)
• Emerson Folder "New 1954".
