• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 321840

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 724 Ch= 120151B [light green ] - Emerson Radio & Phonograph

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 195 x 150 x 140 mm / 7.7 x 5.9 x 5.5 inch

• Notes

• See the "Assorted decorator colors" on separate model pages to enable a collector to show his/her different colored models in the collector page by uploading a photo of each to the corresponding page - and allows RMorg to show a full gallery if wished in a later stage.

  The clock-radio Emerson 724 was sold in these colors: Cherry Red, Hot Chocolate, Forest Green, Cloud Gray, Ivory, Cerulean Blue, Sand (Pink), Willow Green (a very light Green), and Ebony. Today we have to be careful if a set is not overpainted or to think there is a missing color here because his/her set is bleached out. Depending on case color there may be different colored knobs.
  The add from a 1953 paper reads: You get so much more with Emerson! Nine Smart "House and Garden"colors. A percision electric Alarm-Clock with Easy-See Dial (one glance tells you time and station) A beam light indicator- helps you dial in the dark!

  The models show at the back side a timer outlet for up to 1100 watts at 115 volts AC and a radio switch. Model 808-B and 810-B have a similar cabinet and chassis - wothout clock. Internal ferrite rod antenna.

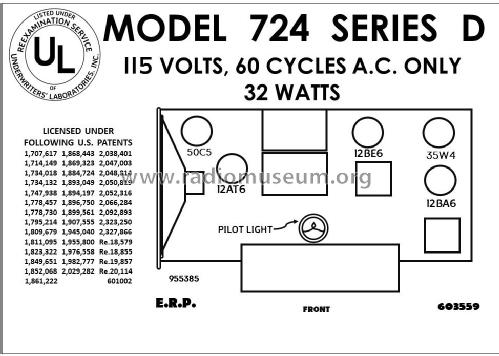

  According to Beitman diagrams the chassis is 120151-B, but we don't know if this is the case for all series. The model 724 is known for series B (724-B) and series D (724-D). See sticker at the bottom.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 13, 1953

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 7-53, Set 208, Folder 5)

• Literature/Schematics (3)
• Emerson Folder "New 1954".

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
