810B Ch= 120222-B
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 80746
-
- alternative name: Emerson Television

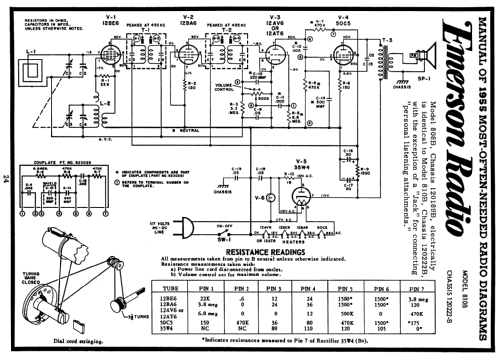

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 810B Ch= 120222-B - Emerson Radio & Phonograph
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Quoting from the Beitman's schematic:
"Model 808B, Chassis 120189B, electrically is identical to Model 810B, Chassis 120222B, with the exception of a “Jack” [in the 808B] for connecting “personal listening attachments"."
Built-in coil antenna. There is a couplate number 923028 with seven parts in "(the electrical) front" of the tube 50C5.
Beitman and Photofact list only a model 810B, not a model 810.
- Source of data
- Beitman Radio Diagrams, Vol. 15, 1955
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition) (page 92 (picture) - also for a model Emerson 810 - but this is probably not existing.)
- Literature/Schematics (1)
- Table Top Radios Vol. 1 Stein 98 (page 76.)
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (February 1955, set 268, folder 6.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
