• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114433

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

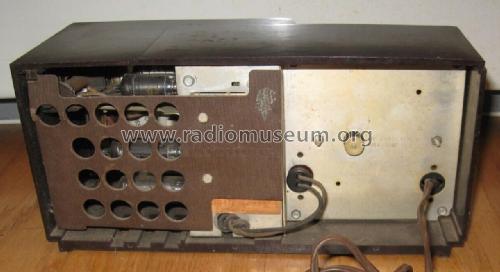

• Model: 816B Ch= 120201-B - Emerson Radio & Phonograph

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Chassis similar to 788B.

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Mentioned in
• Machine Age to Jet Age II

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 14, 1954 (for chassis)

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
