• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104059

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

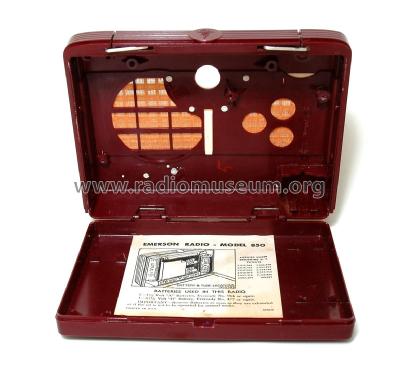

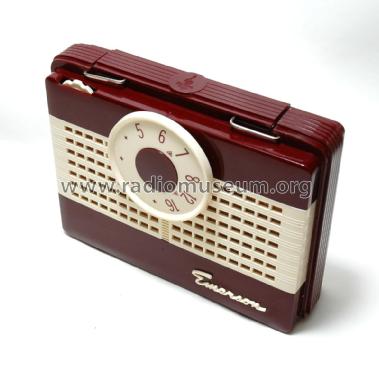

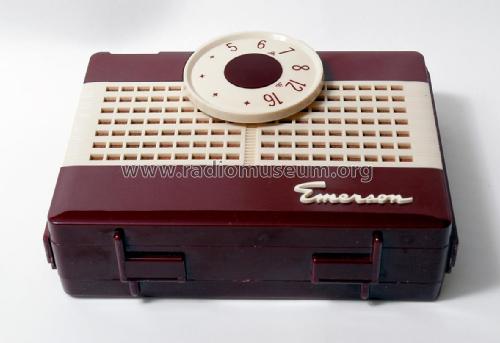

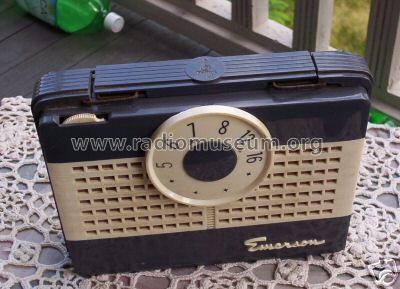

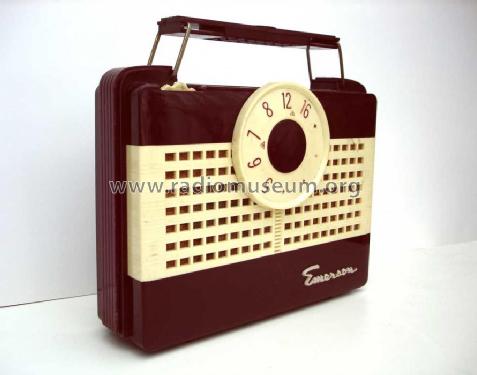

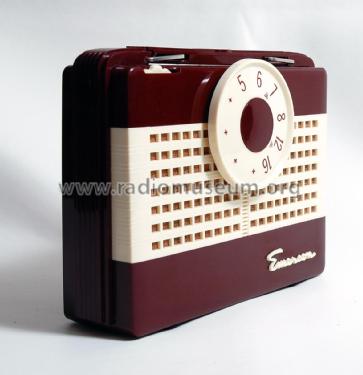

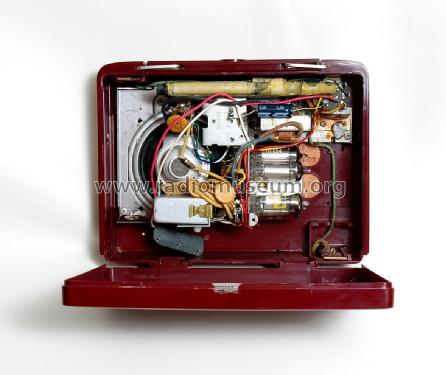

• Model: 850 Ch= 120154-B - Emerson Radio & Phonograph

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 150 x 60 mm / 7.9 x 5.9 x 2.4 inch

• Notes
• Uses chassis of model 704.

• Source of data
• - - Data from my own collection

• Circuit diagram reference

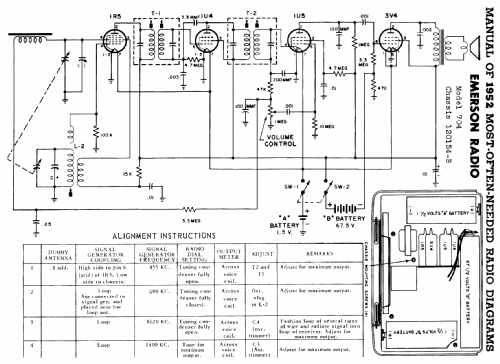

• Beitman Radio Diagrams Vol. 12, 1952

• Mentioned in
• Collector's Guide to Antique Radios (6th edition) (Schiffer: The Portable Radio in American Life)

• Author
• Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.

• Other Models

• Here you find 2068 models, 1146 with images and 1625 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
