• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135939

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2N486 2N484 2N362 2N631

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

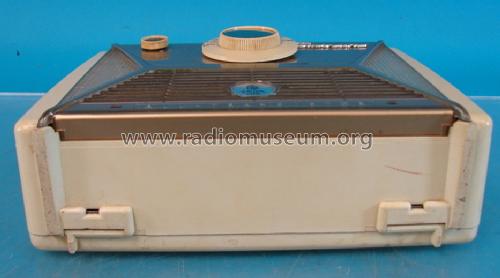

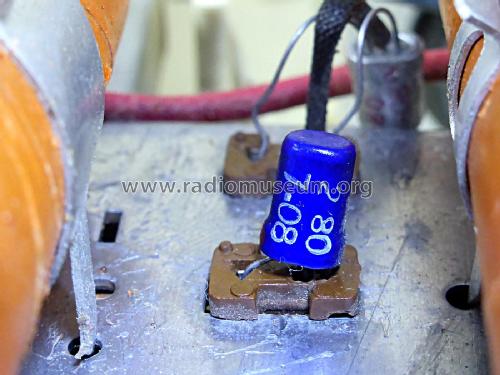

• Model: 869 Ch=120350 - Emerson Radio & Phonograph

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• SAMS Photofact, date 3-60, set 478, folder 9 features the Emerson models 868 and 869 as the same schematic.

  Emerson installed terminals for two (2) 9-volt batteries (large Eveready #276 batteries) for this radio but informed the listener, on the interior label, that the radio will work with just one battery instead of two.   This radio plays very well with one battery.  Civil Defense marks found on station dial

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 478 folder 9 date 3-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
