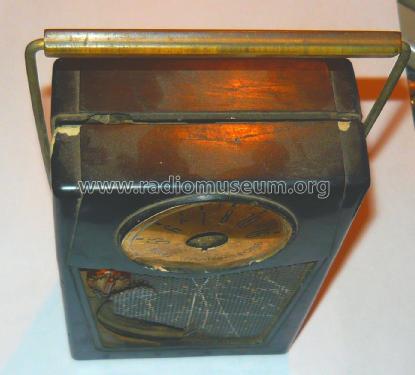

888 "Atlas" Ch= 120485 second run
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 287885
-
- alternative name: Emerson Television
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 888 "Atlas" Ch= 120485 second run - Emerson Radio & Phonograph
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 104 x 160 x 50 mm / 4.1 x 6.3 x 2 inch
- Notes
-
EIA marking: 630243
Indication on back : NEVABREAK Pocket Radio
Colors : Black,white,red,green,turquoise.
Speaker code: 180211 465 C3AU-15 465-002
- Net weight (2.2 lb = 1 kg)
- 0.410 kg / 0 lb 14.4 oz (0.903 lb)
- Author
- Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
