• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82073

• • alternative name: Emerson Television

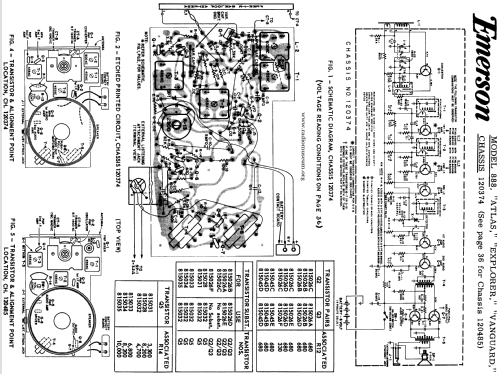

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 888 Atlas Ch= 120374 - Emerson Radio & Phonograph

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6.5 x 4 x 2 inch / 165 x 102 x 51 mm

• Notes

• Colors:Black White Red Green Turquoise.

  Indication on back :

  NEVABREAK Pocket Radio

• Net weight (2.2 lb = 1 kg)
• 0.550 kg / 1 lb 3.4 oz (1.211 lb)

• Source of data
• -- Collector info (Sammler)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 20, 1960

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Date 12-58, Set 423, Folder 11)

• Literature/Schematics (3)
• Transistor Radios 1954-68

• Author
• Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
