915-B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68912

• • alternative name: Emerson Television

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

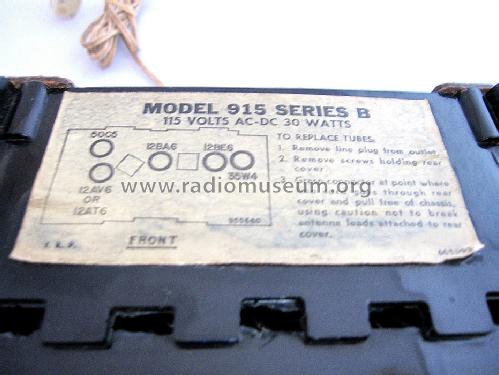

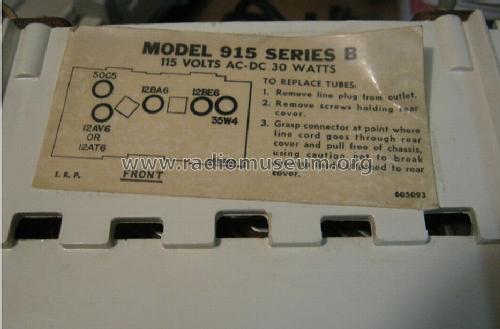

• 12AV6 12BA6 12BE6 50C5 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 915-B - Emerson Radio & Phonograph

• Dimensions (WHD)
• 8 x 5.4 x 5.2 inch / 203 x 137 x 132 mm

• Notes
• Machine Age to Jet Age by Mark V.Stein vol.2, p.117 shows a model 915. That is an error: the picture belongs to model 925-B.

• External source of data
• Konrad Birkner

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
