• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70323

• • alternative name: Emerson Television

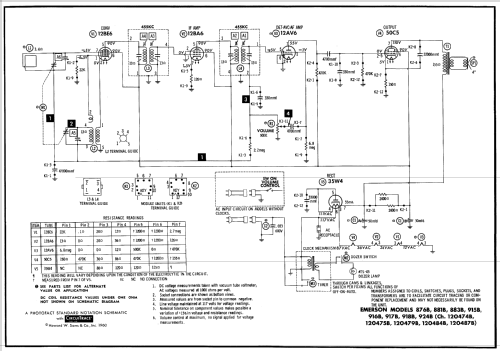

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• from Radiomuseum.org
• Model: 917B Ch=120484B - Emerson Radio & Phonograph

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• The Emerson Model 917B is an AC Operated 5 Tube AM Receiver with Elevtric Clock.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 20, 1960

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 7-60, Set 493, Folder 6)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
