Black/White Television Digital Alarm Clock BCR45A

Emerson Radio & Phonograph Corp.; New York, NY

Data
Forum
Pictures
Collections

  • Year
  • 1984 ??
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 347333
    • alternative name: Emerson Television

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 120 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Black/White Television Digital Alarm Clock BCR45A - Emerson Radio & Phonograph
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

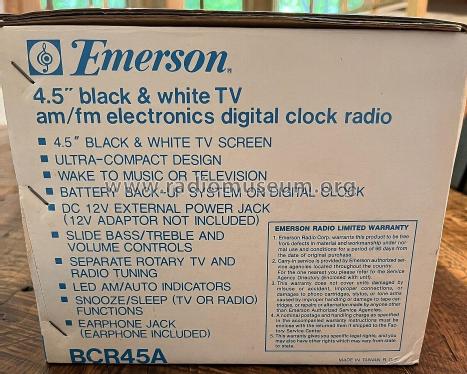

  • Portable 4.5" black&white TV AM/FM Radio Alarm Clock Model Emerson BCR45A

    Frequency Range:
    AM 530 - 1610 kHz
    FM 88 - 108 MHz
    TV - VHF 2-13 CH
    TV - UHF 14 - 83 CH
    Snooze/Sleep Functions (TV or Radio)
    Dimmer
    Earphone Jack
    Telescopic antenna
    Battery Back-Up System on Digital Clock

    Power Consumption 120VAC 60Hz - 20 Watts

    Made in Taiwan R.O.C.

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
