• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108819

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K8 6K7 6Q7G 76 6AC5G 80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

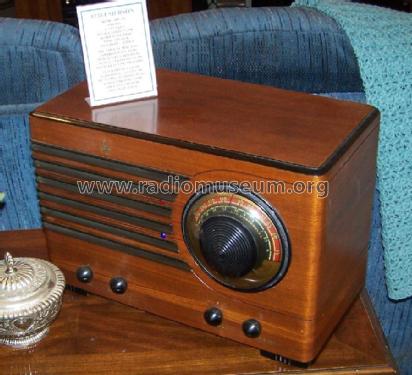

• Model: BW-231 Ch= BW - Emerson Radio & Phonograph

• Shape
• Tablemodel, with any shape - general.

• Notes

• BC (540-1730kHz) and SW (5.6-18.0MHz) bands. Ingraham cabinet.

• Price in first year of sale
• 39.95 $

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (3)
• Emerson Folder Form. 39-22, 2-39 for 1939.
