- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 115302
-
- alternative name: Emerson Television

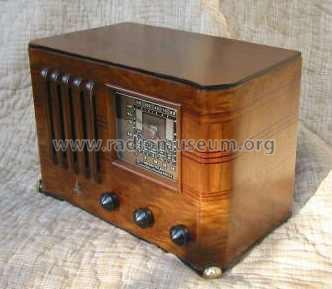

With courtesy by Ebayseller larry21751

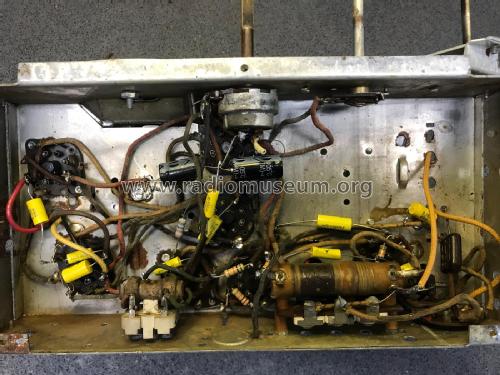

With courtesy by Ebayseller larry21751

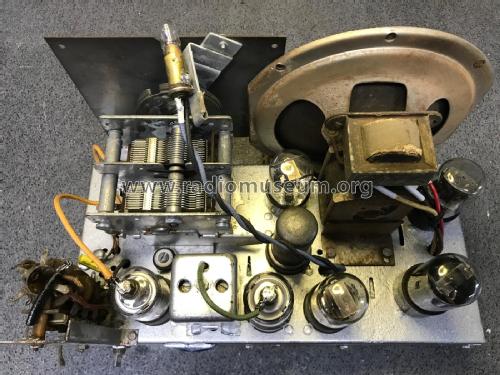

With courtesy by Ebayseller larry21751
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: CS-320 - Emerson Radio & Phonograph
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13.5 x 9 x 7.5 inch / 343 x 229 x 191 mm
- Notes
-
Ingraham cabinet. 5(Stein) or 7(AR6) tubes.
- Net weight (2.2 lb = 1 kg)
- 10 lb 2 oz (10.125 lb) / 4.597 kg
- Price in first year of sale
- 29.95 $
- Source of data
- Collector's Guide to Antique Radios (6th edition)
- Mentioned in
- Table Top Radios Vol. 1 Stein 98
- Literature/Schematics (3)
- Emerson Folder Form. 40-31, 1-40 for 1940.
- Author
- Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
