• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86065

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7GT 12K7GT 12SQ7GT 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: DB-315 Ch= DB - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Ingraham cabinet.

• Price in first year of sale
• 19.95 $

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 04, 1941

• Literature/Schematics (3)

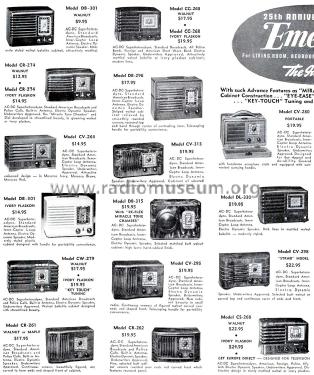

• Emerson Folder Form. 40-31, 1-40 for 1940.

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
