DS365 Ch= DS

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109392

• • alternative name: Emerson Television

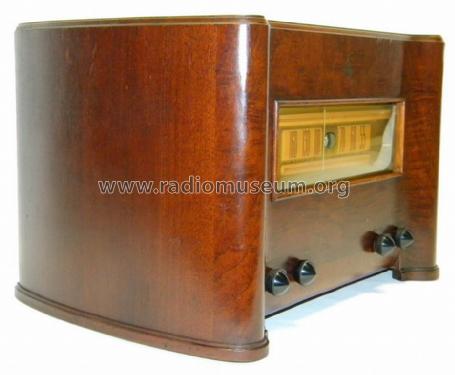

• Picture

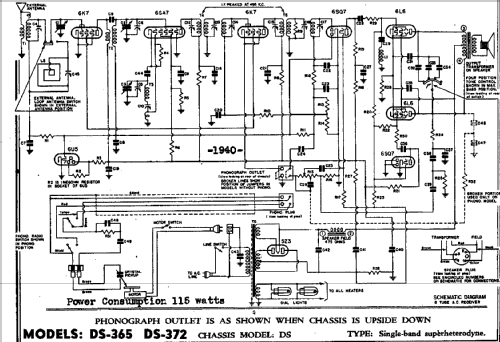

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6K7 6SA7 6K7 6SQ7 6U5 6SQ7 6L6 6L6 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: DS365 Ch= DS - Emerson Radio & Phonograph

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 17 x 11.25 x 12.375 inch / 432 x 286 x 314 mm

• Notes

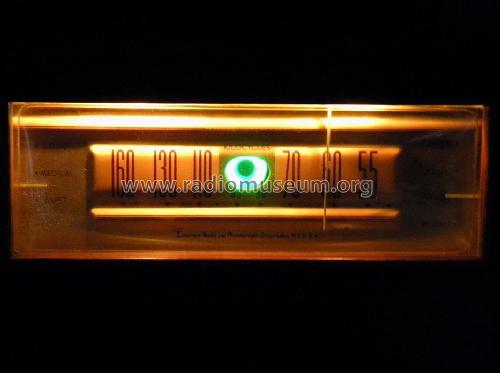

• BC(540-1650kHz) band. Built-in loop or external antenna. Triple IF filters. Push-pull audio amplifier. Tuning eye. Ingraham cabinet.

• Source of data
• Machine Age to Jet Age II

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
