- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111216
-
- alternative name: Emerson Television
Scanned from the Radio Retailing April 1941.

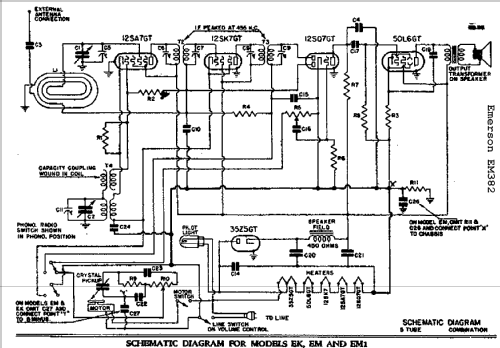

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 382 Ch= EM - Emerson Radio & Phonograph
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- BC (540-1600kHz) band. Built-in loop antenna.
- Price in first year of sale
- 29.95 $
- Source of data
- Collector's Guide to Antique Radios (6th edition)
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (February, April 1941.)
- Author
- Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
