- Country
- Spain
- Manufacturer / Brand
- Emerson Electrónica, CECSA, Teinelsa; Barcelona
- Year
- 1980 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 317646
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: CE-920-A - Emerson Electrónica, CECSA,
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Emerson Electrónica (CECSA) CE-920-A
TV Color 20" con sintonizador electrónico de VHF/UHF y ocho presintonías por sensores.

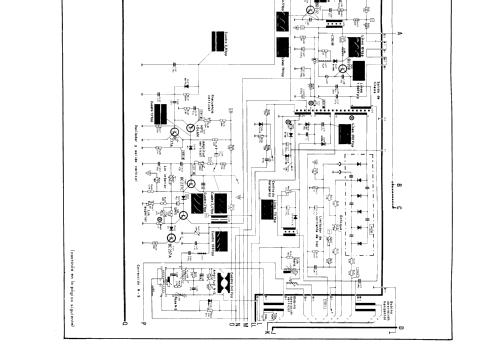

Los esquemas representan las variaciones, circuito de convergencia y TRC, con respecto al modelo CE-945
- Literature/Schematics (1)
- -- Original-techn. papers. (Esquemario TV Color REDE, TVC VIII)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
