- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39003
-
- alternative name: Emerson Television

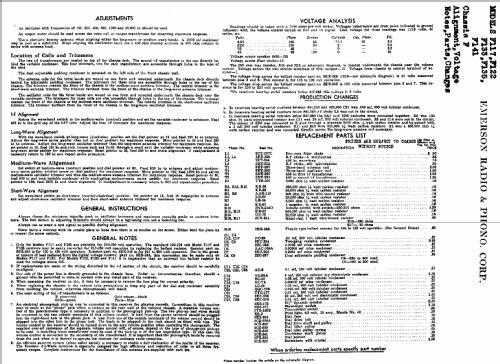

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 105-125;210-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
- from Radiomuseum.org
- Model: F117 Ch= F - Emerson Radio & Phonograph
- Notes
-
LW(150-375kHz), BC(540-1600kHz) and SW(5.7-17.5MHz) bands. 210-250V operation requires new ballast tube. Models with serial number greater than 862650 use 6Q7 and 25B5 tubes. See the different Emerson models L-117LW, model P-117, model 117, model F-117 or model 117-LW.
