• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109661

• • alternative name: Emerson Television

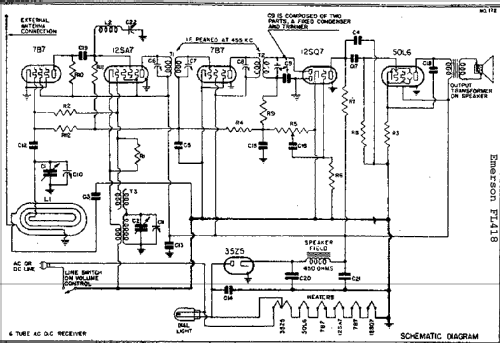

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7B7 12SA7 7B7 12SQ7 50L6 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: FL418 "Humpback Bullseye" Ch= FL - Emerson Radio & Phonograph

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 14.5 x 9.5 x 7 inch / 368 x 241 x 178 mm

• Notes

• BC (540-1630kHz) band. Built-in loop antenna. Ingraham cabinet: The same as model DQ351 with chassis DQ. But see the different scale!

• Source of data
• Table Top Radios Vol. 1 Stein 98

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Machine Age to Jet Age II (page 43)

• Literature/Schematics (3)
• Emerson Folder for 1942.

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
