FV433 (433) Ch= FV
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39032
-
- alternative name: Emerson Television

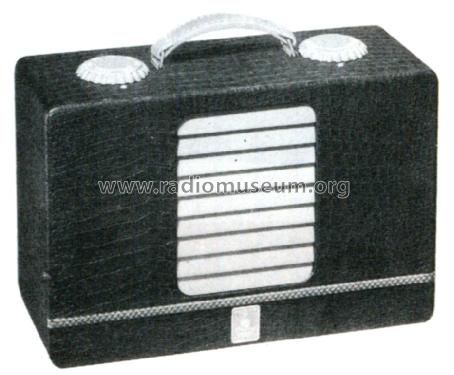

Scanned from the Emerson Folder for 1942.
Scanned from the Emerson Folder for 1942.

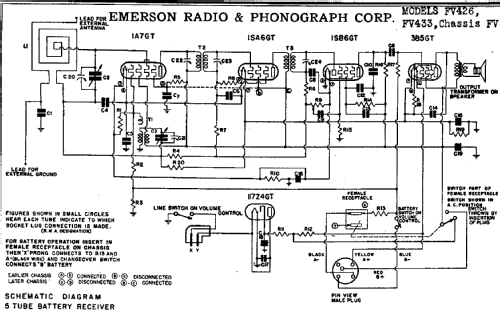

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 105-125; 9; 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: FV433 Ch= FV - Emerson Radio & Phonograph
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
BC (540-1600kHz) band. Built-in loop antenna. AC/DC operation with 117Z4GT. Available in Brown Alligator-Grained simulated leather or Two-Toned Tan.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Literature/Schematics (3)
- Emerson Folder for 1942.
