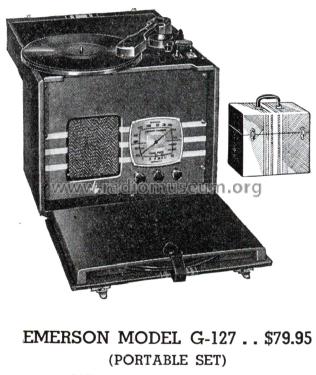

G-127 Ch= G
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39037
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: G-127 Ch= G - Emerson Radio & Phonograph
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15 x 14.5 x 9.5 inch / 381 x 368 x 241 mm
- Notes
-
BC(540-1625kHz) and SW(5.6-18.0MHz) bands.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 79.95 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios (6th edition)
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Literature/Schematics (3)
- Emerson Folder Form-19, 37-6-36, for 1936/1937. Folder Form-19-R, 37-9-36, for 1936/1937.
