• Country
• Italy

• Manufacturer / Brand
• Emerson Electronics; Firenze

• Year
• 1969 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 263947

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 4 x 1,5 / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

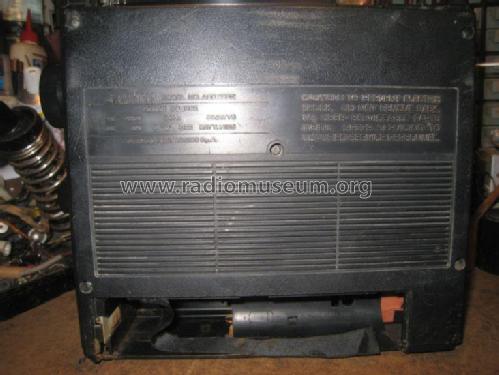

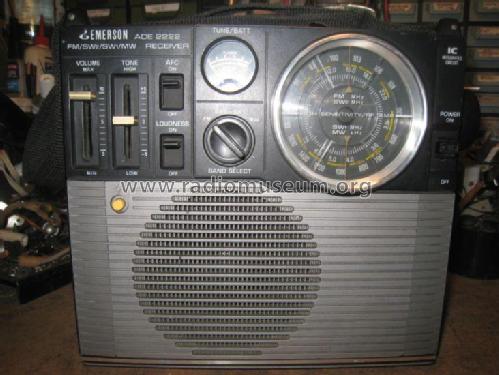

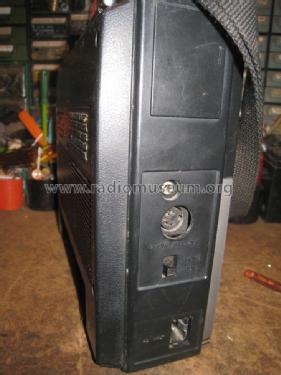

• Model: ADE2222 - Emerson Electronics; Firenze

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 210 x 75 mm / 9.1 x 8.3 x 3 inch

• Notes

• Emerson ADE222 FM/SW₂/SW₁/MW Receiver.

• Net weight (2.2 lb = 1 kg)
• 0.850 kg / 1 lb 14 oz (1.872 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
