Forrestal AS CH= 1737
Emerson Electronics; Firenze
- Country
- Italy
- Manufacturer / Brand
- Emerson Electronics; Firenze
- Year
- 1966 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 343343

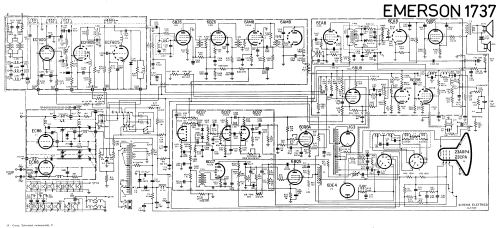

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- EC900 ECF805 EC86 EC88 6BZ6 6BZ6 6AM8 6EA8 6BQ5 6BU8 6EB8 6CG7 6CG7 6DQ6A 6BQ5 6DE4 1G3 23ARP4 or 23CP4
- Number of Transistors
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-235 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Forrestal AS CH= 1737 - Emerson Electronics; Firenze
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Televisore in bianco/nero con VHF e UHF. Cinescopio da 23 pollici con deflessione a 110°.
Altoparlante per medio-basse frequenze ed altoparlante per alte frequenze separato con un condensatore elettrolitico non polarizzato.
- Mentioned in
- -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, 1966.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
