M-755 Ch= M-AC-7

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1932 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39099

• • alternative name: Emerson Television

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 58 58 56 58 55 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

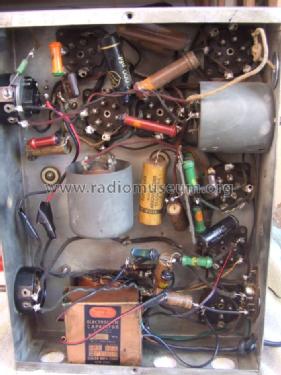

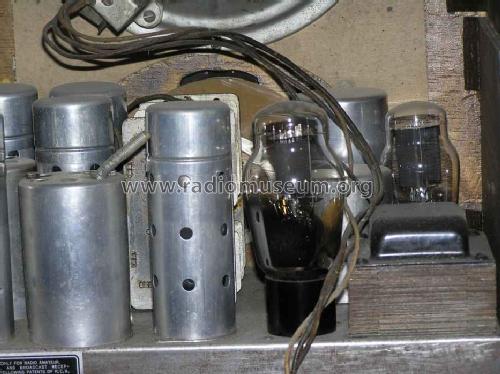

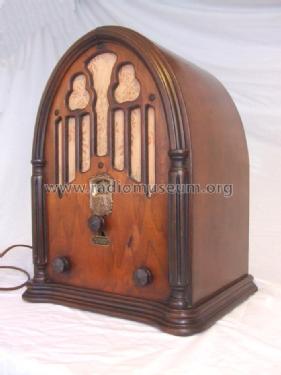

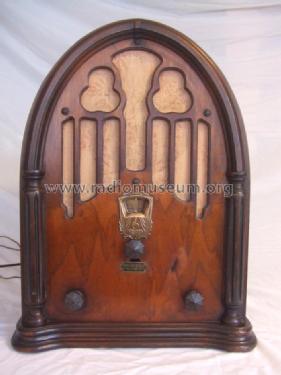

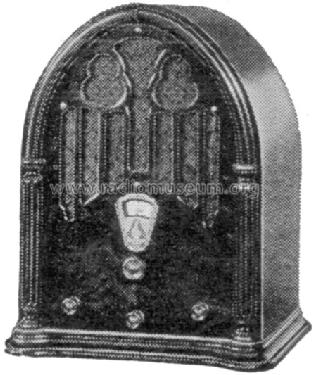

• Model: M-755 Ch= M-AC-7 - Emerson Radio & Phonograph

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Notes

• Separate oscillator tube (56).

  Stein mentions 2 bands.

• Price in first year of sale
• 39.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Machine Age to Jet Age II

• Literature/Schematics (2)
• Cathedral & Tombstone Radios (page 105.)
