• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38466

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

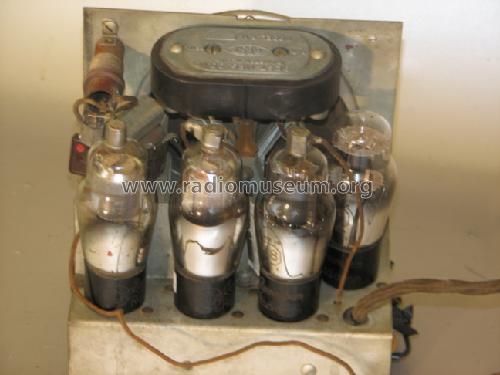

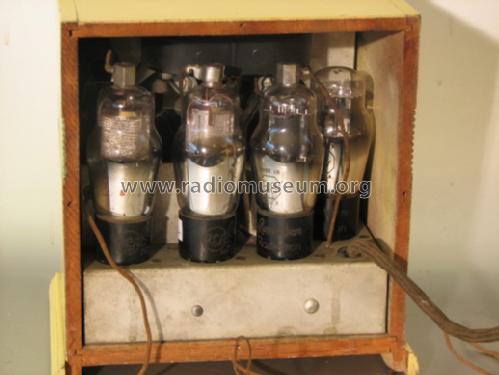

• Valves / Tubes
• 78 6F7 38 1-V

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 409 "Mickey Mouse" Ch= A-4 - Emerson Radio & Phonograph

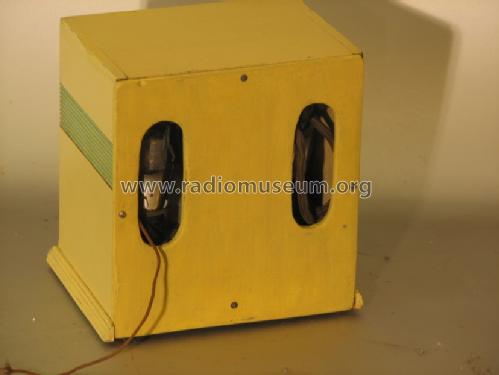

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 180 x 190 x 140 mm / 7.1 x 7.5 x 5.5 inch

• Notes
• Ivory and light green. Same chassis in similar models 410 and 411.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference

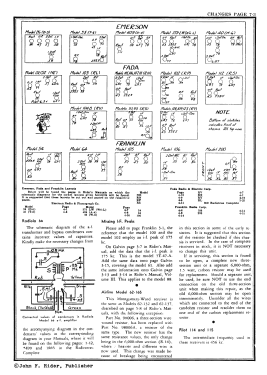

• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
