- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1982 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245730
-
- alternative name: Emerson Television

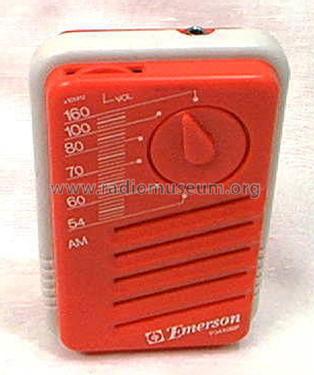

Picture Courtesy Of EBAY User: ncautoman57
Picture Courtesy Of EBAY User: ncautoman57
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: P3440BP - Emerson Radio & Phonograph
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.75 x 4.25 x 1.25 inch / 70 x 108 x 32 mm
- Notes
-
Emerson Pocket AM Radio Model P3440BP.
Earphone Jack, Belt Clip.
Made in ChinaManufactured for sales in Canada (primarily). An unusual PCB arrangement which placed the antenna bar below the tuner instead of at the top of the radio.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
