• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 215792

• • alternative name: Emerson Television

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / 1 x 9 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: P4400 - Emerson Radio & Phonograph

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 88 x 148 x 43 mm / 3.5 x 5.8 x 1.7 inch

• Notes

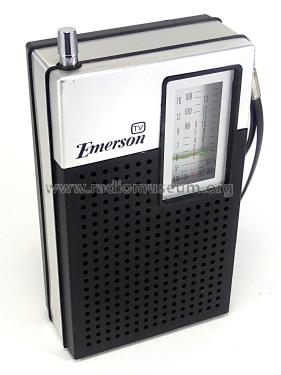

• Emerson Portable Radio Model P4400.
  Tuning Range AM 540-1600 kHz, FM 88-108 MHz, TV1 2 - 6 Ch., TV2 7 - 13 Ch., WB 162.55 MHz.
  Made in Hong Kong.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
