• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90678

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6AQ8 6BA6 6BA6 6BE6 EM84 6BA6 6EA8 12AX7A 12AX7A 6BQ5 6BQ5 5U4GB

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 6 Loudspeakers

• from Radiomuseum.org

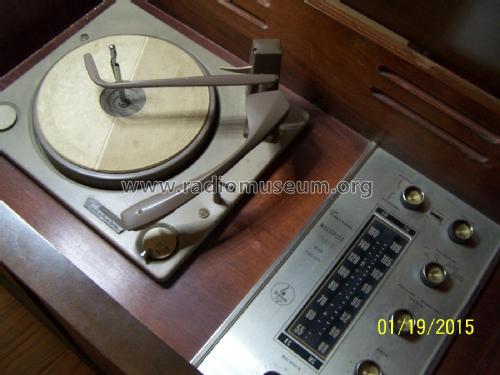

• Model: P-1913 Ch= 120640 + 120639 + 120647 - Emerson Radio & Phonograph

• Notes
• Chassis 120640 is an AM/FM-Stereo receiver.
  Chassis 120647 is an stereo preamplifier.
  Chassis 120639 is an 20w stereo power amplifier with power supply.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 24, 1964

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
