• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239903

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Twin Speakers G-1703 Ch= 120584 - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 9 x 4.5 inch / 305 x 229 x 114 mm

• Notes

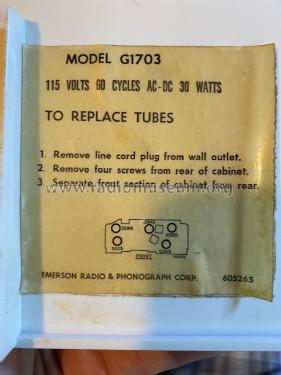

• Emerson Table Top 5 Tube AM Radio Model Twin Speakers G-1703.
  Power Consumption 30 Watts.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 642, Folder 6, August 1963)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
