X-175 Aristocrat Ch= X Late
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39122
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 inch = 38.1 cm
- Power out
- 15 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: X-175 Aristocrat Ch= X [Late] - Emerson Radio & Phonograph
- Shape
- Console with any shape - in general
- Notes
-
BC (540-1800kHz), TROP (1800-6250kHz) and SW (5.8-22.0MHz) bands. Push-pull audio amplifier. Tuning eye. Full range Volume Expansion with Emerson Symphonizer.
- Price in first year of sale
- 750.00 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference

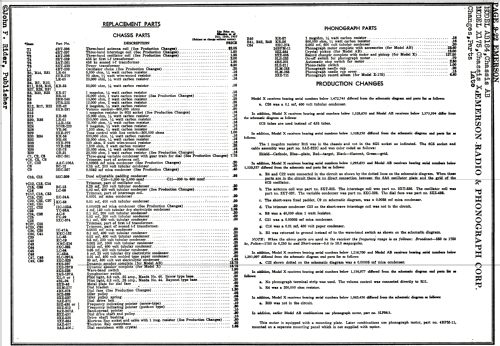

- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (and in "A Blast from the Past")
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (3)

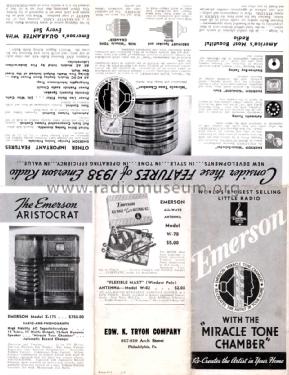

- Emerson Folder Form. 38-3, 5-37 for 1938.
