• Country
• Great Britain (UK)

• Manufacturer / Brand
• EMI; Hayes, Middlesex

• Year
• 1956

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 201826

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope 2300 - EMI; Hayes, Middlesex

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 4.25 x 7.25 x 7.25 inch / 108 x 184 x 184 mm

• Notes
• EMI 2300;
  2,25 " round CRT oscilloscope, 3 MHz Y amp., 7 Hz - 50 kHz time base, made by Industrial Electronics for EMI, compare similar but Sontranic Ltd. labeled unit.

• Net weight (2.2 lb = 1 kg)
• 6.25 lb (6 lb 4 oz) / 2.838 kg

• Mentioned in

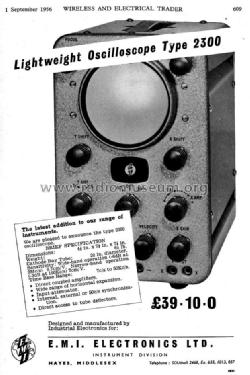

• -- Original prospect or advert (Advert in Wireless and electrical Trader 1. September 1956 p.609)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
