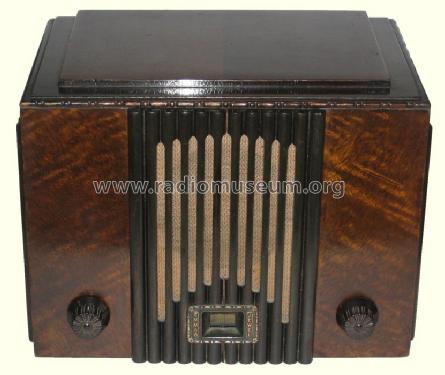

Jewel 453
Emmco Sydney
- Country
- Australia
- Manufacturer / Brand
- Emmco Sydney
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 206759
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 1 AF stage(s); Anode bend detection
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200; 230; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Jewel 453 - Emmco Sydney
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 312 x 230 x 208 mm / 12.3 x 9.1 x 8.2 inch
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
- Other Models
-
Here you find 76 models, 47 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Emmco Sydney
Forum contributions about this model: Emmco Sydney: Jewel 453
Threads: 1 | Posts: 1
Hello. Just to let you know that the advertisement on this page is mis-placed. It belongs to the 1934 Jewel, which has a separate model page.
Stuart
Edit:
Thanks, the advertising has been moved to the 1934 Jewel.
Stuart Irwin, 28.Nov.22
