Troubadour 7 A.C.7
Emmco Sydney
- Country
- Australia
- Manufacturer / Brand
- Emmco Sydney
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323630

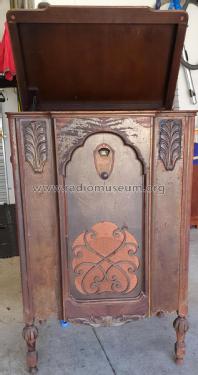

Troubabour 7 - Condition as found
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF without regeneration; Screengrid 1926-1935
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 220-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Troubadour 7 A.C.7 - Emmco Sydney
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
8 valve, AC powered, TRF receiver with push-pull audio output.
Incorporates a separate shielded power supply.
- Mentioned in
- Wireless Weekly (Australia) (Vol. 17, No. 23, 29/5/1931, Page 52.)
- Literature/Schematics (1)
- - - Manufacturers Literature (Emmco Troubadour 1931 Catalogue, Page 6)
- Author
- Model page created by Nigel Hanwell. See "Data change" for further contributors.
