• Country
• Brazil

• Manufacturer / Brand
• Empire Indústria Nacional, Pintucci Spadari & Cia.; São Paulo, SP

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279106

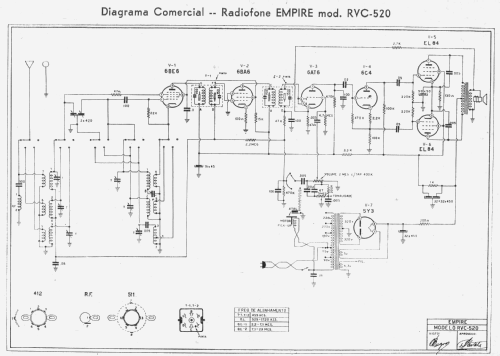

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• 2 Loudspeakers / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

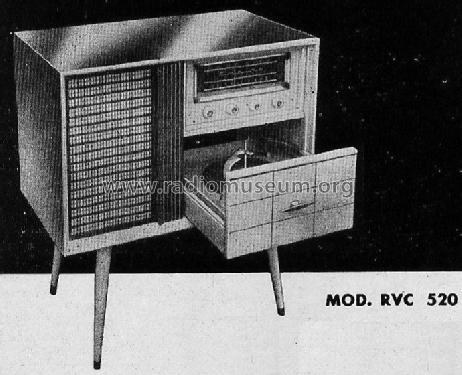

• Model: Console Empire RVC520 - Empire Indústria Nacional,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Tone control

  3 speed record changer

  cabinet with 2 wood options, walnut or ivory

• Literature/Schematics (1)
• Manufacturer advertising 1959

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
