• Country
• Brazil

• Manufacturer / Brand
• Empire Indústria Nacional, Pintucci Spadari & Cia.; São Paulo, SP

• Year
• 1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 272063

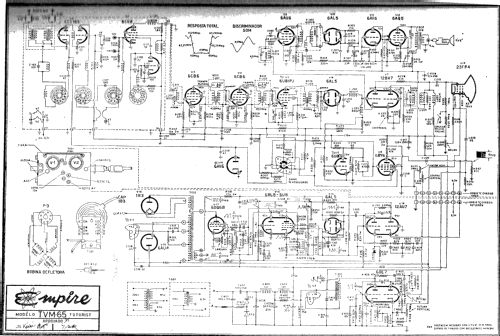

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• ECC189 6CG8 6AU6 6AL5 6AV6 6AQ5 6CB6 6U8 12BH7 6BY6 1B3 6AU4 6DQ6 6BL8 12AU7 6DE7 23FP4

• Main principle
• Superheterodyne (common); ZF/IF 40000 kHz

• Power type and voltage
• Alternating Current supply (AC) / 115; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

• Power out
• 4 W (unknown quality)

• from Radiomuseum.org
• Model: Futurist TVM-65 - Empire Indústria Nacional,

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
