• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962/1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 21652

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

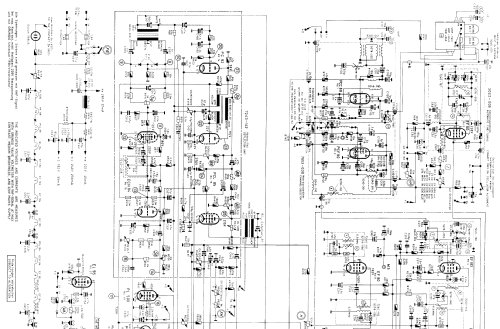

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• AW59-90

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel FT255 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 720 x 500 x 360 mm / 28.3 x 19.7 x 14.2 inch

• Notes
• VHF/UHF. 59cm Bildröhre; Kunststoff-Frontseite; Raumlicht-Kompensator; Holz mitteldunkel-hochglanzpoliert; mehrpreis für Nußbaum 12.-DM; Mehrpreis Rüster oder Teak 22.-DM

• Net weight (2.2 lb = 1 kg)
• 37 kg / 81 lb 8 oz (81.498 lb)

• Price in first year of sale
• 1,298.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
