Zauberspiegel FS250
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1962/1963
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 21648
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Q: Grundig, ETL-Liste August 1962
Q: Grundig Service

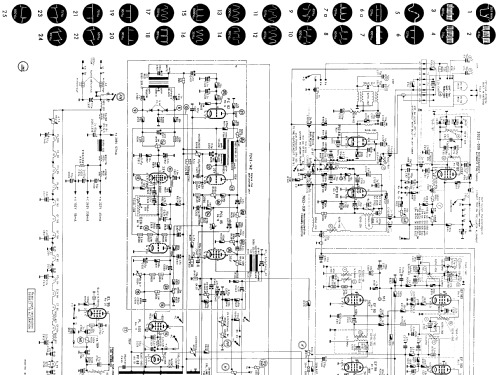

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- PCC88 PCF80 PC88 PC93 EF80 EF183 EF183 EF184 PCL84 EF80 EF184 PABC80 ECH84 PL84 PC92 PCL85 ECH84 PL500 PY88 DY86 EL95 AW59-90
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Zauberspiegel FS250 - Grundig Radio-Vertrieb, RVF,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 670 x 920 x 390 mm / 26.4 x 36.2 x 15.4 inch
- Notes
-
VHF/UHF. Technische Daten wie Zauberspiegel FT250, jedoch Standgerät mit Falt-Klapptüren. 59cm Bildröhre; Holz mitteldunkel-hochglanzpoliert; Mehrpreis für Nußbaum 35.-DM; Mehrpreis Rüster 65.-DM.
Anschluss für Kabelfernbedienung: Fernregler V (5).
Dioden sind nur einmal pro Typ erfasst.
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)
- Price in first year of sale
- 1,668.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1962/1963
- Literature/Schematics (1)
- -- Original-techn. papers. (Grundig ETL-Liste August 1962)
