2 Band 7 Transistor EP-721 MW-SW
EPEO (brand)
- Country
- Worldwide
- Manufacturer / Brand
- EPEO (brand)
- Year
- 1963 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284882

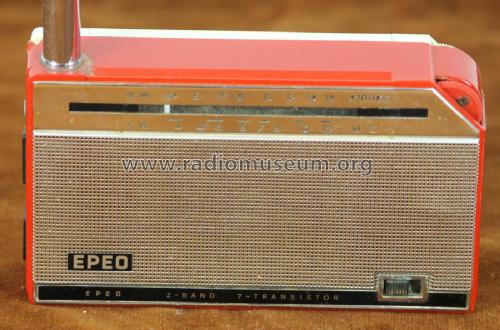

EPEO 721 with SW (Todocolleccion)
(Todocolleccion)

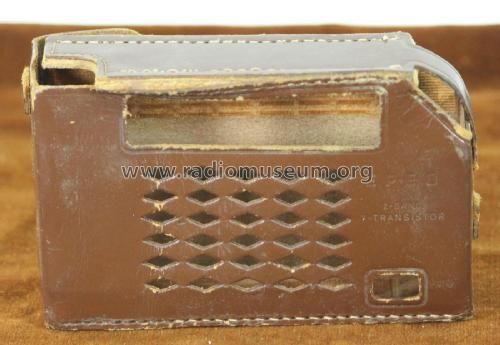

Leather case (Todocolleccion)
(Todocolleccion)
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / AA: 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2 Band 7 Transistor EP-721 [MW-SW] - EPEO brand
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 135 x 80 x 33 mm / 5.3 x 3.1 x 1.3 inch
- Notes
-
Made in JAPAN,with leather case
MW and SW (4 to 12Mhz).
Identical to Panasonic T45 (same shape, same bands, and same circuitry)
- Author
- Model page created by Olivier Palix. See "Data change" for further contributors.
- Other Models
-
Here you find 5 models, 5 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
