• Country
• Belgium

• Manufacturer / Brand
• Erga; Namur

• Year
• 1968 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 339600

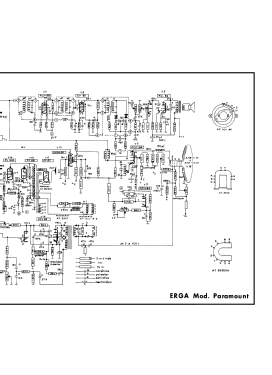

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCF801 PC900 EF183 EF183 EF184 PCL84 PCF80 EF80 PCL86 ECH84 PCC88 PCF80 PCL85 PL500 PY88 DY87 A47-11W

• Number of Transistors

• Semiconductors
• BY100

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Paramount 19" - Erga; Namur

• Notes

• TV B/W 19"

• Mentioned in
• Esquemario TV REDE, Tomo V, 1969

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
