- Country
- Hungary
- Manufacturer / Brand
- Ericsson, Magyar Villamossági Részvénytársaság; Budapest
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 334997
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
- Material
- Bakelite case
- from Radiomuseum.org

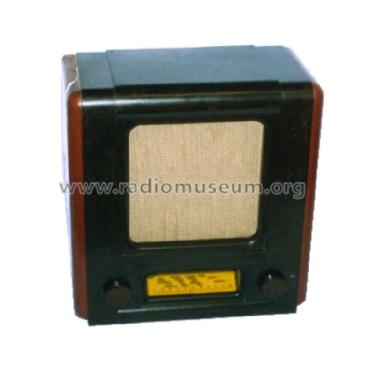

- Model: Pacsirta - Ericsson, Magyar Villamossági
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 320 x 310 x 0 mm / 12.6 x 12.2 x 0 inch
- Price in first year of sale
- 110.00 Pengö
- Mentioned in
- Stenberg Híradó, 9. szám, 1935. 10. 15
- Literature/Schematics (1)
- Nosztalgia Rádió Hírújság 40.szám, 2005 február
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
