• Country
• United States of America (USA)

• Manufacturer / Brand
• Pearson Radio Corp. - see also ERLA; Chicago, IL

• Year
• 1925

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179528

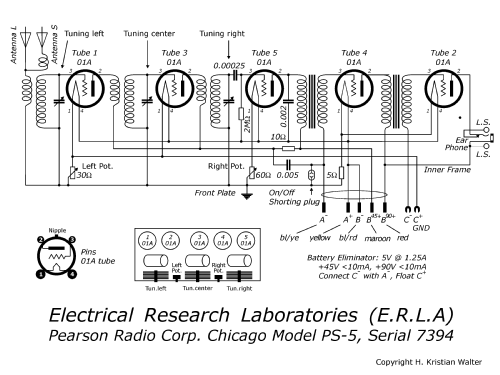

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UV201A UV201A UV201A UV201A UV201A

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

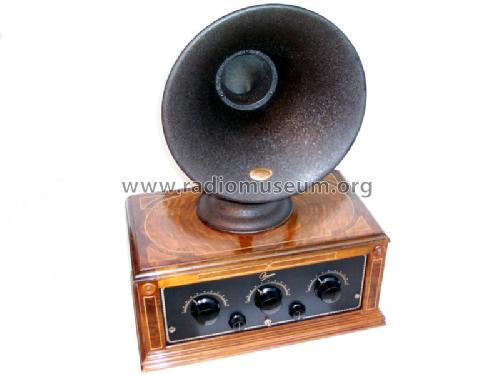

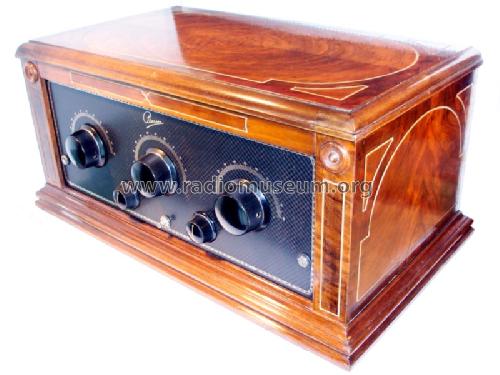

• Model: Pearson PS-5 De Luxe - Pearson Radio Corp. - see also

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 20 x 10 x 9 inch / 508 x 254 x 229 mm

• Notes
• Model PS-5 De Luxe, by Pearson Radio Corp., Division of ERLA, Chicago.

• Price in first year of sale
• 78.00 $

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (see under Pearson)

• Literature/Schematics (1)
• Radio Manufacturers of the 1920s, Vol 1 (p.190)

• Author
• Model page created by Christian Walter. See "Data change" for further contributors.
