• Country
• Netherlands

• Manufacturer / Brand
• Erres, Van der Heem NV; Den Haag

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94235

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK1 AF2 E444 E443H 1823

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

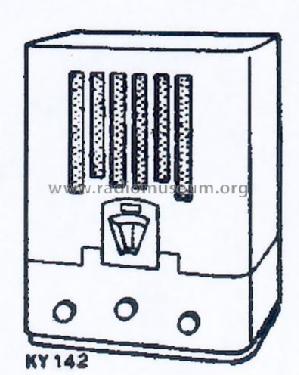

• Model: KY142 - Erres, Van der Heem NV; Den

• Price in first year of sale
• 198.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Author
• Model page created by John Koster. See "Data change" for further contributors.

• Other Models

• Here you find 408 models, 325 with images and 221 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
