- Country
- Italy
- Manufacturer / Brand
- ESB, Electroacoustic Systems Building; Aprilia (LT)
- Year
- 1980 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 311159
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Power out
- 25 W (max.)
- Material
- Wooden case
- from Radiomuseum.org

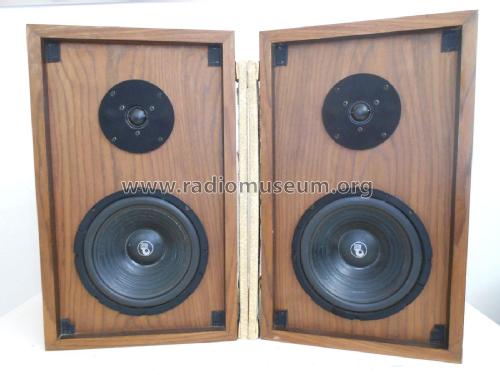

- Model: 25 L - ESB, Electroacoustic Systems
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 480 x 295 x 235 mm / 18.9 x 11.6 x 9.3 inch
- Notes
-
1 woofer 20 cm con sospensione pneumatica in gomma - 1 dome tweeter cm. 2,5 - frequenza di crossover 1.600 Hz - risposta in frequenza: 28 - 20.000 Hz - potenza massima 100 watt - impedenza nominale 8 Ω - sensibiltà 87 db (1mt) - nobile in noce -
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Price in first year of sale
- 233,000.00 lire
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
