Uhrenradio RE 2479
ESGE; Mettlen
- Country
- Switzerland
- Manufacturer / Brand
- ESGE; Mettlen
- Year
- 1976 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 341767
- Number of Tubes
- 0
- Valves / Tubes
- VFD_unknown_type
- Number of Transistors
- Semiconductors present.
- Semiconductors
- LM8360
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

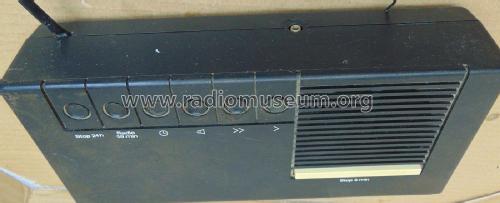

- Model: Uhrenradio RE 2479 - ESGE; Mettlen
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 260 x 70 x 135 mm / 10.2 x 2.8 x 5.3 inch
- Notes
-
ESGE MW/UKW Uhrenradio, grüne Vakuum-Fluoreszenz-Anzeige (VFD). Ferritantenne für MW, Wurfantenne für UKW.
FTZ-Nr. 195/23
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
