W-07/C/20 (W-07/C/00) /A /B
Werner; Madrid
- Country
- Spain
- Manufacturer / Brand
- Werner; Madrid
- Year
- 1969 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 316383
Imagen del manual

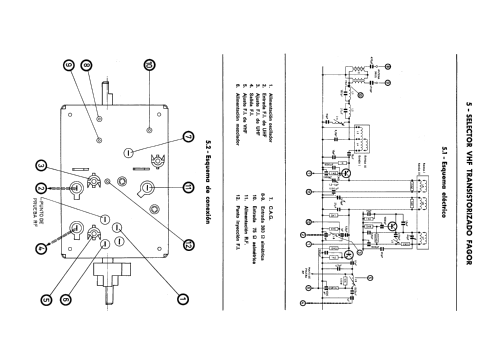

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- 11
- Semiconductors
- unknown_tr unknown_tr unknown_tr AF239 AF139 BF194 BF194 BF196 BF197 BF197 BC157 BY126 AA119 OA90 BA100 OA95 F16 TV18
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: W-07/C/20 /A /B - Werner; Madrid
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 595 x 408 x 205 mm / 23.4 x 16.1 x 8.1 inch
- Notes
-
Wener S.A.E. modelo W-07/C/20 (W-07/C/00) /A /B
- TV 20" B/N
- Selector rotativo de VHF transistorizado Fagor 1T-20 ó 2T-20, ERKA, o Roselson RV3-202-TS. (unknown_tr depende del selector usado).
- Sintonizador transistorizado de UHF tipo Roselson RU-69T.
- Modelos A y B difieren en detalles externos de la caja.
Altavoz elíptico de 4" x 6"
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
