- Country
- United States of America (USA)
- Manufacturer / Brand
- Espey Mfg. Co., Inc.; New York (NY)
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39195
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: 512 - Espey Mfg. Co., Inc.; New York
- Shape
- Chassis only or for «building in»
- Notes
- The Espey Model 512 is an AC Operated 11 Tube AM-FM Superheterodyne Tuner for Custom Installation.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (1)

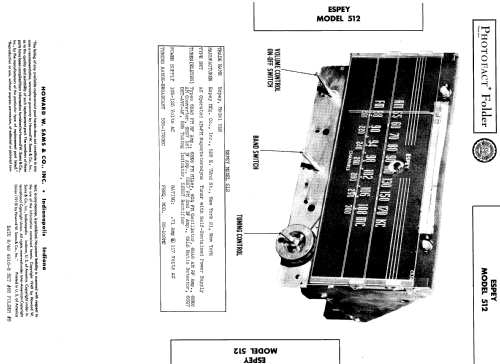

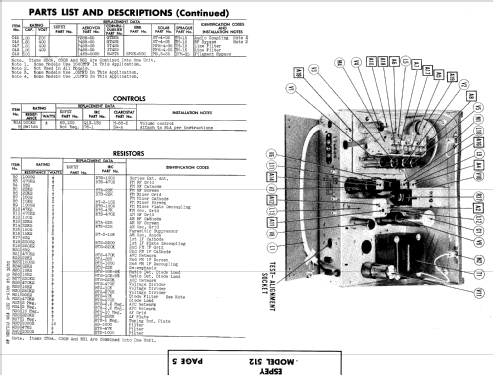

- Photofact Folder, Howard W. SAMS (Date 8-49, Set 68, Folder 8)
