- Country
- United States of America (USA)
- Manufacturer / Brand
- Esquire Radio Corp.; New York, NY
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 85008
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 65-4 - Esquire Radio Corp.; New York,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- The Esquire models 65-4 and 60-10 are AC-DC Operated Superheterodyne Receiver.
- Source of data
- Collector's Guide to Antique Radios (6th edition)
- Literature/Schematics (1)

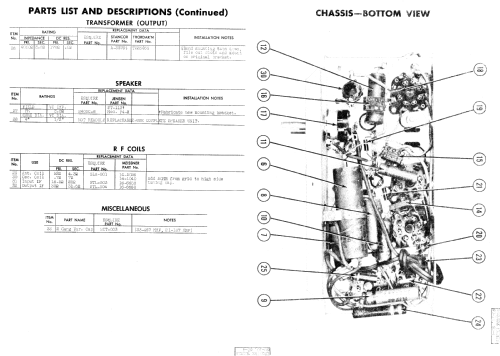

- Photofact Folder, Howard W. SAMS (Date: Feb 1947, Set 14, Folder 474-11)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
