• Country
• United States of America (USA)

• Manufacturer / Brand
• Essex Radio Corp..

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39260

• Number of Tubes
• 4

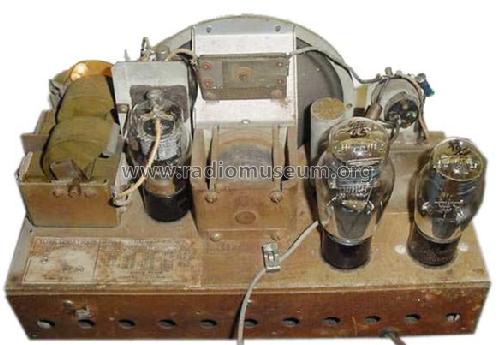

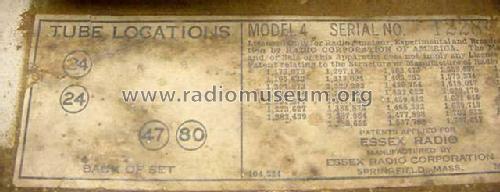

• Valves / Tubes
• 24 24 47 80

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

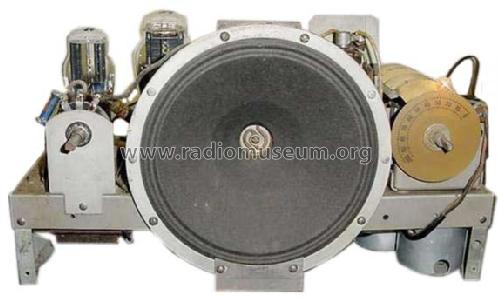

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

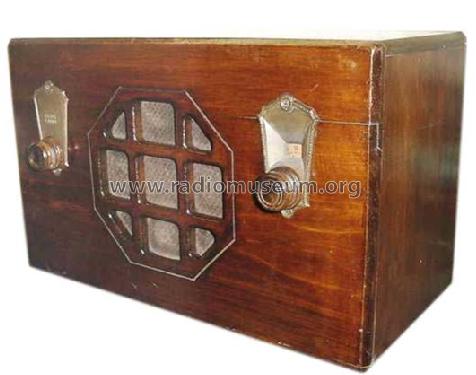

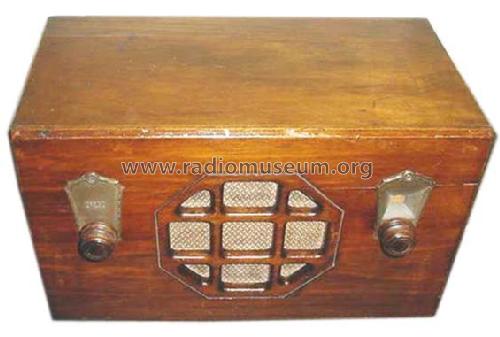

• Model: 4tubes - Essex Radio Corp..

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Other Models

• Here you find 2 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
