• Country
• Italy

• Manufacturer / Brand
• Italradio; Torino

• Year
• 1953 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286228

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBC3 EL3 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

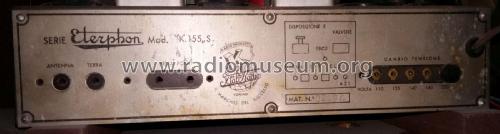

• Model: Eterphon K.155 S OM - Italradio; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 380 x 290 mm / 25.2 x 15 x 11.4 inch

• Notes

• Presa Fono. Controllo toni a scatti con 3 posizioni: grave, medio, acuto.

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 8 models, 7 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
