- Country
- Italy
- Manufacturer / Brand
- Eterphon; Torino
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177266
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 125; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

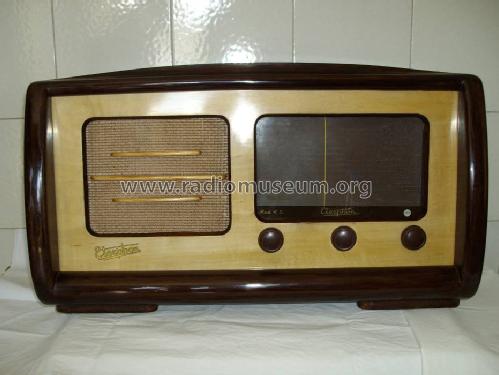

- Model: K5 - Eterphon; Torino
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 57 x 317 x 235 mm / 2.2 x 12.5 x 9.3 inch
- Notes
-

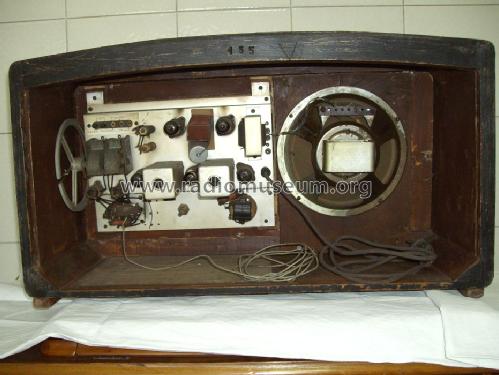

La radio è costruita senza trasformatore, con la rete collegata al telaio. I filamenti delle valvole sono in serie, collegati alla rete dopo un opportuno partitore di tensione.
Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.
Controllo di tono on/off.
- Author
- Model page created by Guido Rubino. See "Data change" for further contributors.
